Burner Styles

Choose your burner, then choose your log set.

Rasmussen gas logs offer this “mix and match” versatility to allow you to create the perfect look for your fireplace. Any of the burners below can be used with most of the vented log sets we carry.

F Burner

The F Burner is our basic single tube burner designed to be used under a log grate. It produces a pleasing, dancing flame with a more compact ember bed than the FX burner (below).

Click images below for a larger view. Press ‘ESC’ to exit view.

FX Burner

The FX Burner features the same main burner tube as the F, but adds dual ember booster tubes for a larger, brighter ember bed in front of the logs (2-inches more depth of embers than the F burner). It is used with our grate.

Click images below for a larger view. Press ‘ESC’ to exit view.

CS Burner

The CS Burner is the original pan tube burner, which can be used with legs for a clean look or without legs for a pit fire look. The CS Burner may also be used in See-Through fireplaces with Double Face logs. The logs reside inside the burner on the pan filler – no grate is to be used with the CS Burner.

Click images below for a larger view. Press ‘ESC’ to exit view.

CXF Burner

The CXF Burner combines the full, realistic flame of the CS with the larger ember bed of the FX. The ramped pan is height adjustable for added versatility. The logs reside inside the burner on the pan filler – no grate is to be used with the CXF Burner.

Click images below for a larger view. Press ‘ESC’ to exit view.

TNA Burner

The TNA Burner is designed for use in narrow-backed Kiva and Rumford fireplaces with tall or short tipi log arrangements, or with andirons (with the Evening Series log sets).

Click images below for a larger view. Press ‘ESC’ to exit view.

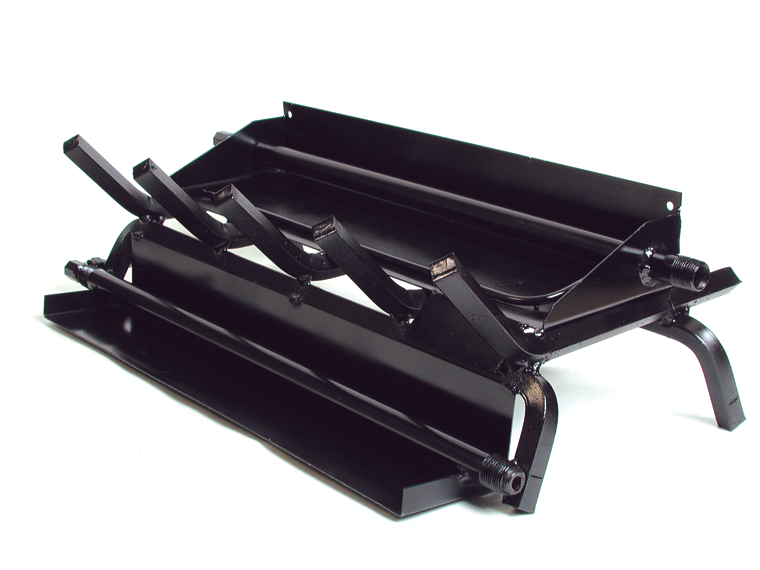

LC & LD Burner

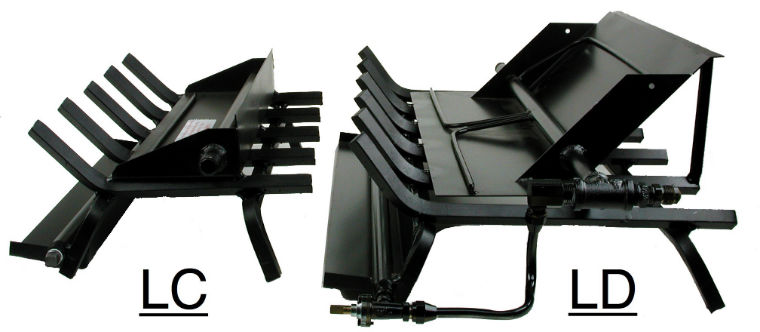

The LC & LD Burner features multi-tiered burners integrated with the log grate. Designed for use with TimberFire, and can be used with any Evening Series log sets. The LC is for 18″, 24″ and 30″ sizes. The LD is for 30″ to 96″ sizes.

Click images below for a larger view. Press ‘ESC’ to exit view.

DF-CF Burner

The DF-CF burner and parallel grate are used with Double Face logs in see-through fireplaces. The DF-CF burner provides a full main flame with large glowing ember beds on both sides. The single pan design provides positive gas ignition.

Burner systems include pan filler, Ember Magic, connector kit, damper clamp and installation instructions. Pan filler note: Natural Gas burners use specially granulated white sand. Propane burners use black volcanic ash.

Video: Burner Kits



Rett Rasmussen discusses Rasmussen Burner Kits.



---

Video: Gas Connectors

Rasmussen uses flexible stainless steel gas connectors with a varying pattern of crinkles that virtually eliminates the whistling that occurs from connectors with a uniform pattern (like you get from competitors and mass merchants). These non-whistling connectors are standard in all Rasmussen Vented Gas Logs, Chillbuster Vent-free heaters, and Alterna Contemporary Gas Fires.
